制动系统及挂车测试与型式认证
联合国欧洲经济委员会(UNECE)指定技术服务机构

欧盟地区整车技术框架指令由欧盟委员会(EC)制定,同时引用或整合UNECE关于汽车系统、零部件和技术单元的技术法规。根据整车框架指令2007/46/EC, 如果某类型车辆已根据框架指令完成测试并获得欧盟整车型式认证(EC WVTA认证),则同类车辆即可在整个欧盟范围内销售和注册,市场覆盖五亿消费人群。经认证的车辆可在任一欧盟成员国自由注册,而无需进行附加测试或提交补充文件。

泰测认证专家已获得M/N/O/T/L/NRMM类型车辆的所有EU/UN法规授权,可在中国本地完成包括工厂审核、实验室审核、目击测试、CoP审核及报告签署等认证工作,授权的交通部包括荷兰(e/E4)、瑞典(e/E5)、卢森堡(e/E13)、爱尔兰(e/E24)、塞浦路斯(e/E49)、拉脱维亚(e/E32)、立陶宛(e/E36)。

依照UN Regulation No. 90,对于制动器衬片、制动蹄、制动盘需要进行机械性能测试、台架测试及对应车型的实车测试,泰测联合欧洲合作实验室为国内制造商提供专业高效的一站式R90测试、认证服务,申请德国(E1) 和拉脱维亚(E32)证书。


了解更多欧盟认证请点击:

了解更多制动系统测试与认证信息请点击以下链接:
认证流程
技术文件准备
制造商准备技术文件
泰测协助审核技术文件
选型与测试
在型号系列中选择测试车型或零部件型号
准备测试样车或样件
由泰测安排在欧洲或国内实验室测试
可在符合条件的工厂实验室进行目击测试
生产一致性审核
泰测与交通部官员前往工厂进行工厂审核
确保生产质量管理体系符合
ISO标准及认证相关要求
证书批准
技术报告与信息文件审核
颁发型式认证证书
在产品没有设计变更且生产一致性
确认有效的情况下,证书永久有效
在线获取报价
注册或登陆泰测TM数字化客户平台获取认证报价、阅览超过54个国家16,000种产品的认证流程、
法规原文、提交信息文件并管理您的认证项目
57ad482cd559bbcc1e0dc8042f656af2.svg
注册或登录
UNECE R90基本概念

Brake Components testing
UNECE R90 简介
本标准规定了汽车和挂车制动系统用制动衬片、鼓式制动总成、盘式制动总成、制动鼓和制动盘等制动器换装零部件的术语和定义、试验相关要求、技术要求和试验方法、包装和标志、产品一致性。本标准不适用于原装制动鼓、制动盘、鼓式制动总成、盘式制动总成和型式认证时车辆安装的制动衬片和用于车辆售后维修服务的原装换装制动鼓、制动盘、鼓式制动总成、盘式制动总成和制动衬片。

适用于UNECE R90的产品类型
  • 用于构成车辆制动系统一部分的摩擦制动器的换装制动衬片总成,适用于已根据R13、R13-H或R78法规获得型式认证的M、N、L和O类车辆。
  • 设计为铆接在鼓式制动器上的换装鼓式制动衬片,适用于根据R13法规获得型式认证的M3、N2、N3、O3或O4类车辆。
  • 独立于行车制动系统的驻车制动系统的换装制动衬片总成。
  • 用于构成车辆制动系统一部分的摩擦制动器的换装制动盘、制动鼓,适用于已根据R13、R13-H或R78法规获得型式认证的M、N、L和O类车辆。
制动衬片、制动盘/鼓测试与认证

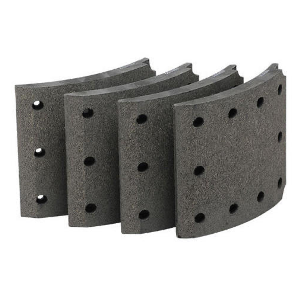

制动衬片
制动衬片类型:指摩擦材料特性无差别的一类制动衬片。
制动衬片总成类型:指车轮中制动衬片总成在制动衬片类型、尺寸或功能特性上没有差别。
鼓式制动衬片类型:指车轮中安装到鼓式制动蹄中的制动衬片零部件在制动衬片类型、尺寸或者功能特性上没有差别。
材料测试
技术要求
基本技术要求
1. 能满足R13、R13H、R78的要求
2. 换装部件应显示出与拟替换的原装部件相似的性能特征
3. 换装部件必须具有足够的机械特性
4. 制动衬片不得含有石棉
机械特征要求
对于M1,M2,N1,O1,O2,L
1. 盘式制动衬片总成的最小可接受抗剪强度为250 N/cm2,鼓式制动衬片总成则为100 N/cm2
2. 盘式制动衬片总成的可压缩值在环境温度下不得超过2%,在400℃时不得超过5%;鼓式制动衬片总成的可压缩值在环境温度下不得超过2%,在200℃时不得超过4%。(不适用于驻车制动衬片总成)
对于M3,N2,N3,O3,O4
1. 对于盘式制动衬片总成,最小可接受抗剪强度为250 N/cm2
2. 盘式制动衬片总成的可压缩值在环境温度下不得超过2%,在400℃时不得超过5%;鼓式制动衬片总成的可压缩值在环境温度下不得超过2%,在200℃时不得超过4%
3. 材料硬度(适用于鼓式制动衬片总成和鼓式制动衬片,包括了生产一致性测试):换装制动衬片总成或换装鼓式制动衬片应根据标准ISO 2039-2:1987进行硬度测试。摩擦面摩擦材料的硬度值应是在每个制动衬片的不同位置进行五次测量,从不同生产批次(如有)的五个衬片样品中得出的平均值
M, N类车换装制动衬片测试流程
O类车换装制动衬片测试流程

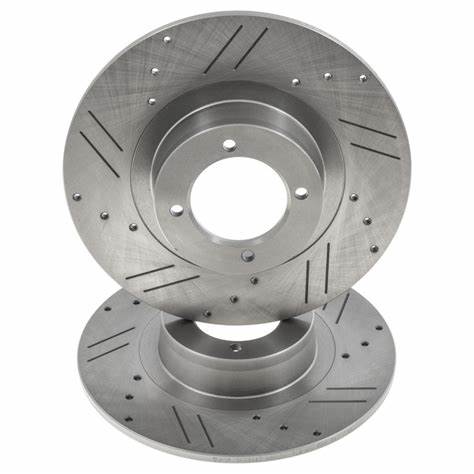

制动盘/鼓
1. 试验组:根据5.3.6段(同一类型中试验组分类)具有相同特性的制动盘/制动鼓的类型;即对于可互换部件来说,同一个类型中选择具有最大动能质量(换装部件质量)比的至少一种变种进行换装部件测试。
2. 变种:特定试验组中的单个制动盘/制动鼓
3. 材料组:如铸铁、钢、铝等
4. 材料子组:第5.3.3.2段(材料和冶金要求)中对于等效制动盘/制动鼓定义的子类分组之一。
产品
分类分型标准
制动盘分类标准
基础设计
是否为通风盘(如实心盘、通风盘)
通风的设计
表面(是否有挖槽或挖空)
轮毂(是否集成驻车制动鼓)
安装方式(刚性、半浮动、全浮动等)
制动帽(是否集成驻车制动鼓)
材料分组
铸铁
复合材料
多材料结构
制动鼓分类标准
材料类别(如钢、铸铁、复合材料)
轮毂(有或没有)
复合设计
材料测试
技术要求
基本技术要求
能满足R13,R13-H,R78的要求
换装部件应显示出与拟替换的原装部件相似的性能特征
换装部件必须具有足够的机械特性
换装的制动盘/制动鼓应在温度下表现出足够的抗变形能力
制动盘的最小厚度不得小于车辆制造商规定的原装制动盘的最小厚度
制动鼓的最大允许内径不得超过车辆制造商规定的原装制动鼓的最大允许内径
原装换装制动盘/制动鼓
无进一步要求
相同换装制动盘/制动鼓
无进一步要求
等效换装制动盘/制动鼓
制动盘几何尺寸要求
制动盘/制动鼓材料冶金要求
可互换制动盘/制动鼓
制动盘/制动鼓几何尺寸要求
制动盘/制动鼓类型
测试要求
原装换装制动盘/制动鼓
无进一步要求
相同换装制动盘/制动鼓
无进一步要求
等效换装制动盘/制动鼓
台架完整性测试
可互换制动盘/制动鼓
静态台架测试(只适用于L类车)
整车或台架性能测试
整车或台架动态摩擦性能测试(与原厂部件进行对比测试)
台架完整性测试(高负荷和热疲劳)
M、N类车换装制动衬盘/ 制动鼓测试
O类车换装制动盘/制动鼓测试流程
挂车测试及型式认证

依据框架指令2007/46/EC完成测试并获得欧盟整车型式认证WVAT证书

挂车欧盟认证
电磁兼容测试UNECE Regulation No. 10
制动系统测试UNECE Regulation No. 13/H
灯具安装UNECE Regulation No. 48
机械耦合装置安装UNECE Regulation No. 55
后防护UNECE Regulation No. 58
侧防护UNECE Regulation No. 73
质量与尺寸EU Regulation No. 1230/2012
后牌照板安装EU Regulation No. 1003/2010
轮胎安装EU Regulation No. 458/2011
铭牌EU Regulation No. 19/2011
防飞溅系统EU Regulation No. 109/2011
欧盟指令及法规总览

泰测认证专家已获得M/N/O/T/L/NRMM类型车辆的所有EU/UN法规授权,
可在中国本地完成包括工厂审核、实验室审核、目击测试、CoP审核及报告签署等认证工作
序号
法规号
说明(英文)
说明(中文)
1
Regulation (EU) 2018/858
Framework regulation on the approval and market surveillance of motor vehicles and their trailers, and of systems, components and separate technical units intended for such vehicles
M/N/O类车欧盟整车认证WVTA框架指令
2
Regulation (EU) No 540/2014
UN R51
Sound level
声音等级
3
Regulation (EC) No 715/2007
COMMISSION REGULATION (EU) 2017/1151
Commission Regulation (EU) 2017/1154
Commission Regulation (EU) 2017/1347
Commission Regulation (EU) 2018/1832
Commission Regulation (EU) 2020/49
Emissions (Euro 5 and Euro 6) light duty vehicles/access to information
轻型车排放(欧5,欧6)
4
UN Regulation No 34
Prevention of fire risks (liquid fuel tanks)
燃油箱/后防护
5
UN Regulation No 58
Rear underrun protective devices (RUPDs) and their installation; rear underrun protection (RUP)
后下防护装置
6
Commission Regulation (EU) No 1003/2010
Space for mounting and fixing rear registration plates
牌照板空间
7
UN Regulation No 79
Steering equipment
转向
8
Commission Regulation (EU) No 130/2012
Vehicle access and manoeuvrability (steps, running boards and handholds)
进门装置及机动性(台阶/脚踏板/扶手)
9
Regulation (EU) No 130/2012
Vehicle access and manoeuvrability (reverse gear)
进门装置及机动性(倒档)
10
UN Regulation No 11
Door latches and door retention components
门锁门铰链
11
UN Regulation No 28
Audible warning devices and signals
喇叭
12
UN Regulation No 46
Devices for indirect vision and their installation
后视镜及其安装
13
UN Regulation No 13
Braking of vehicles and trailers
商用车制动
14
UN Regulation No 13-H
Braking of passenger cars
乘用车制动
15
UN Regulation No 10
Electromagnetic compatibility
电磁兼容
16
UN Regulation No 21
Interior fittings
内部突出物
17
UN Regulation No 18
Protection of motor vehicles against unauthorised use
防盗
18
UN Regulation No 116
Protection of motor vehicles against unauthorised use
防盗
19
UN Regulation No 12
Protection of the driver against the steering mechanism in the event of impact
安全转向
20
UN Regulation No 17
Seats, their anchorages and any head restraints
座椅/座椅固定点/头枕
21
UN Regulation No 80
Seats of large passenger vehicles
客车座椅
22
UN Regulation No 26
External projections
外部突出物
23
UN Regulation No 39
Speedometer equipment including its installation
速度表及其安装
24
Regulation (EU) No 19/2011
Manufacturer’s statutory plate and VIN
制造商铭牌与车辆VIN码
25
UN Regulation No 14
Safety-belt anchorages, Isofix anchorages systems and Isofix top tether anchorages
安全带固定点
26
UN Regulation No 48
Installation of lighting and light-signalling devices on vehicles
灯具安装
27
UN Regulation No 3
Retro-reflecting devices for power-driven vehicles and their trailers
回复反射器
28
UN Regulation No 7
Front and rear position lamps, stop-lamps and end-outline marker lamps for motor vehicles and their trailers
位置灯、制动灯和示廓灯
29
UN Regulation No 87
Daytime running lamps for power-driven vehicles
日间行车灯
30
UN Regulation No 91
Side-marker lamps for motor vehicles and their trailers
侧标志灯
31
UN Regulation No 6
Direction indicators for power-driven vehicles and their trailers
转向灯
32
UN Regulation No 4
Illumination of rear-registration plates of power-driven vehicles and their trailers
后牌照灯
33
UN Regulation No 31
Power-driven vehicle’s sealed-beam headlamps (SB) emitting an European asymmetrical passing beam or a driving beam or both
前照灯(SB)
34
UN Regulation No 37
Filament lamps for use in approved lamp units of power-driven vehicles and their trailers
白炽灯泡
35
UN Regulation No 98
Motor vehicle headlamps equipped with gas-discharge light sources
气体放电光源前照灯
36
UN Regulation No 99
Gas-discharge light sources for use in approved gas-discharge lamp units of power-driven vehicles
气体放电光源(HID)
37
UN Regulation No 112
Motor vehicle headlamps emitting an asymmetrical passing beam or a driving beam or both and equipped with filament lamps and/or LED modules
非对称前照灯
38
UN Regulation No 123
Adaptive front-lighting systems (AFS) for motor vehicles
自适应前照灯(AFS)
39
UN Regulation No 19
Power-driven vehicle front fog lamps
前雾灯
40
Commission Regulation (EU) No 1005/2010
Towing device
拖钩
41
UN Regulation No 38
Rear fog lamps for power-driven vehicles and their trailers
后雾灯
42
UN Regulation No 23
Reversing lights for power-driven vehicles and their trailers
倒车灯
43
UN Regulation No 77
Parking lamps for power-driven vehicles
驻车灯
44
UN Regulation No 16
Safety-belts, restraint systems, child restraint systems and Isofix child restraint systems
安全带
45
UN Regulation No 125
Forward field of vision
前向视野
46
UN Regulation No 121
Location and identification of hand controls, tell-tales and indicators
操纵件和指示器
47
Commission Regulation (EU) No 672/2010
Windscreen defrosting and demisting systems
除霜除雾系统
48
Commission Regulation (EU) No 1008/2010
Windscreen wiper and washer systems
雨刮与洗涤器
49
UN Regulation No 122
Heating systems
加热系统
50
Commission Regulation (EU) No 1009/2010
Wheel guards
护轮板
51
UN Regulation No 25
Head restraints (headrests), whether or not incorporated in vehicle seats
头枕
52
Regulation (EC) No 595/2009
Emissions (Euro VI) heavy duty vehicles/access to information
重型车排放(欧6)
53
UN Regulation No 73
Lateral protection of goods vehicles
货车、挂车和半挂车的侧面防护
54
Commission Regulation (EU) No 109/2011
Spray suppression systems
防飞溅系统
55
Regulation (EU) No 1230/2012
Masses and dimensions
质量与尺寸
56
UN Regulation No 43
Safety glazing materials and their installation on vehicles
安全玻璃及其安装
57
Commission Regulation (EU) No 458/2011
UN R142

Installation of tyres
轮胎安装
58
UN Regulation No 30
Pneumatic tyres for motor vehicles and their trailers (Class C2)
乘用车轮胎(C1类)
59
UN Regulation No 54
Pneumatic tyres for commercial vehicles and their trailers (Classes C2 and C3)
商用车轮胎(C2和C3类)
60
UN Regulation No 117
Tyre rolling sound emissions, adhesion on wet surfaces and rolling resistance (Classes C1, C2 and C3)
轮胎滚动噪音
61
UN Regulation No 64
Temporary-use spare unit, run-flat tyres / system and tyre pressure monitoring system
备胎
62
UN Regulation No 141
Temporary-use spare unit, run-flat tyres / system and tyre pressure monitoring system
胎压监控TPMS
63
UN Regulation No 89
Speed limitation of vehicles限速装置
63
UN Regulation No 61
Commercial vehicles with regard to their external projections forward of the cabs rear panel
商用车驾驶室外部凸出物
63
UN Regulation No 55
Mechanical coupling components of combinations of vehicles
机械耦合装置
64
UN Regulation No 102
Close-coupling device (CCD); fitting of an approved type of CCD
紧耦合装置(CCD)
65
UN Regulation No 118
Burning behaviour of materials used in the interior construction of certain categories of motor vehicles
内饰材料燃烧
66
UN Regulation No 107
M2 and M3 vehicles
客车结构
67
UN Regulation No 66
Strength of the superstructure of large passenger vehicles
客车顶部结构强度
68
UN Regulation No 94
Protection of occupants in the event of a frontal collision
前碰
69
UN Regulation No 95
Protection of occupants in the event of lateral collision
侧碰
70
UN Regulation No 135
Pole side impact
侧面柱碰(PSI)
71
UN Regulation No 105
Vehicles for the carriage of dangerous goods
危险品运输(ADR)
72
UN Regulation No 93Front underrun protective devices (FUPDs) and their installation; front underrun protection (FUP)
前下部防护(FUPD)
73
Regulation (EC) No 78/2009
UN Regulation No 127

Pedestrian protection
行人保护
74
Directive 2005/64/EC
Recyclability
回收ELV
75
Directive 2006/40/EC
Air-conditioning systems
空调系统
76
Regulation (EC) No 79/2009
UN Regulation No 134

Hydrogen system
氢能源系统
77
Regulation (EC) No 661/2009
Regulation (EU) 2019/2144

General Safety
一般安全
78
Commission Regulation (EU) No 65/2012
Gear shift indicators
换挡器
79
Commission Regulation (EU) No 347/2012
UN Regulation No 131

Advanced emergency braking system
先进紧急制动(AEBS)
80
Commission Regulation (EU) No 351/2012
UN Regulation No 130

Lane departure warning system
车道偏离预警(LDWS)
81
UN Regulation No 67
Specific components for liquefied petroleum gases (LPG) and their installation on motor vehicles
LPG车辆
82
UN Regulation No 97
Vehicle alarm systems (VAS)
车辆报警系统(VAS)
83
UN Regulation No 100
Electric safety
电安全与动力电池
84
UN Regulation No 110
Specific components for CNG and their installation on motor vehicles
CNG车辆
85
UN Regulation No 29
Cab strength
驾驶室强度
86
Regulation (EU) 2015/758
Commission Delegated Regulation (EU) 2017/79

eCall system
eCall车载紧急呼叫系统

序号
法规号
说明(英文)
说明(中文)
1
168/2013/EU
Frame Regulation - on the approval and market surveillance of two- or three-wheel vehicles and quadricycles
两轮、三轮及四轮摩托车型式批准及市场监督框架法规
2
3/2014/EU Annex II
Audible warning devices
喇叭
3
3/2014/EU Annex III
Braking, including anti-lock and combined braking systems
制动
4
3/2014/EU Annex IV
Electrical safety
电气安全
5
3/2014/EU Annex V
Endurance testing of functional safety critical systems, parts and equipment
耐久
6
3/2014/EU Annex VI
Front and rear protective structures
前后防护
7
3/2014/EU Annex VII
Glazing, windscreen wipers and washers, and defrosting and demisting systems
玻璃、雨刮及清洗装置、除霜除雾
8
3/2014/EU Annex VIII
Driver-operated controls, identification of controls, tell-tales and indicators
操纵件、操纵件标识、仪表及指示器
9
3/2014/EU Annex IX
Installation of lighting and light signalling devices, automatic switching of lighting
照明与信号装置安装、照明感应开关
10
3/2014/EU Annex X
Rearward visibility
后视野
11
3/2014/EU Annex XI
Roll-over protective structure (ROPS)
翻滚保护结构(ROPS)
12
3/2014/EU Annex XII
Safety belt anchorages and safety belts
安全带及其固定点
13
3/2014/EU Annex XIII
Seating positions (saddles and seats)
乘坐位置(鞍座及座椅)
14
3/2014/EU Annex XIV
Steer-ability, cornering properties and turn-ability
转向性能
15
3/2014/EU Annex XV
Installation of tyres
轮胎安装
16
3/2014/EU Annex XVI
Vehicle maximum speed limitation plate and its location on the vehicle
最高车速标识及位置
17
3/2014/EU Annex XVII
Vehicle occupant protection, including interior fittings and vehicle doors
乘员防护,包括内饰及车门
18
3/2014/EU Annex XVIII
Maximum continuous rated or net power and/or maximum vehicle speed
最大连续额定或净功率、最高车速
19
3/2014/EU Annex XIX
Vehicle structure integrity
车身刚性
20
44/2014/EU Annex II
Powertrain tampering prevention (anti-tampering) measures
动力防篡改
21
44/2014/EU Annex III
Requirements applying to arrangements for type-approval procedures
型式批准要求
22
44/2014/EU Annex IV
Conformity of production (CoP)
生产一致性(CoP)
23
44/2014/EU Annex V
Coupling devices and attachments
耦合装置及附件
24
44/2014/EU Annex VI
Devices to prevent unauthorised use
防盗
25
44/2014/EU Annex VII
Electromagnetic compatibility (EMC)
电磁兼容(EMC)
26
44/2014/EU Annex VIII
External projections
外部突出物
27
44/2014/EU Annex IX
Fuel storage
燃油存储
28
44/2014/EU Annex X
Load platforms
装载平台
29
44/2014/EU Annex XI
Masses and dimensions
质量尺寸
30
44/2014/EU Annex XII
Functional on-board diagnostics (OBD)
OBD功能
31
44/2014/EU Annex XIII
Passenger handholds and footrests
乘员扶手及脚踏
32
44/2014/EU Annex XIV
Registration plate space
牌照板空间
33
44/2014/EU Annex XV
Access to repair and maintenance information
维修维护信息获取
34
44/2014/EU Annex XVI
Stands
脚撑
35
44/2014/EU Annex XVII
Standards and assessment of technical services
技术服务机构评定标准
36
134/2014/EU Annex II
Test type I requirements: tailpipe emissions after cold start
I型测试:冷启动排放
37
134/2014/EU Annex III
Test type II requirements: tailpipe emissions at (increased) idle and free acceleration
II型测试:怠速排放
38
134/2014/EU Annex IV
Test type III requirements: emissions of crankcase gases
III型测试:曲轴箱排放
39
134/2014/EU Annex V
Test type IV requirements: evaporative emissions
IV型测试:蒸发排放
40
134/2014/EU Annex VI
Test type V requirements: durability of pollution-control devices
V型测试:污染控制装置劣化
41
134/2014/EU Annex VII
Test type VII requirements, CO2 emissions, fuel consumption, electric energy consumption and electric range
VII型测试:二氧化碳排放、燃油消耗、电量消耗及电里程
42
134/2014/EU Annex VIII
Test type VIII requirements: OBD environmental tests
VIII型测试:OBD测试
43
134/2014/EU Annex IX
Test type IX requirements: sound level
IX型测试:噪音
44
134/2014/EU Annex X
Testing procedures and technical requirements as regards propulsion unit performance
动力单元测试程序及技术要求
45
134/2014/EU Annex XI
Vehicle propulsion family with regard to environmental performance demonstration testing
动力单元系列环境性能示范测试
46
134/2014/EU Annex XII
Amendment of Part A of Annex V to Regulation (EU) No 168/2013
Regulation (EU) No 168/2013附件V第A部分补充件
47
901/2014/EU
implementing Regulation (EU) No 168/2013 of the European Parliament and of the Council with regard to the administrative requirements for the approval and market surveillance of two- or three-wheel vehicles and quadricycles
欧洲议会及委员会关于实施Regulation (EU) No 168/2013 两轮、三轮及四轮摩托车型式批准和市场监督行政要求的法规

序号
法规号
说明(英文)
说明(中文)
1
UN Regulation No. 1
Uniform provisions concerning the approval of motor vehicle headlamps emitting an asymmetrical passing-beam and/or a driving-beam and equipped with filament lamps of categories R2 and/or HS1
非对称前照灯
2
UN Regulation No. 2
Uniform provisions concerning the approval of incandescent electric lamps for headlamps emitting an asymmetrical passing beam or a driving beam or both
非对称前照灯
3
UN Regulation No. 3
Uniform provisions concerning the approval of retro-reflecting devices for power-driven vehicles and their trailers
回复反射器
4
UN Regulation No. 4
Uniform provisions concerning the approval of devices for the illumination of rear registration plates of power-driven vehicles and their trailers
后牌照灯
5
UN Regulation No. 5
Uniform provisions concerning the approval of power-driven vehicle's "sealed beam" headlamps (SB) emitting a European asymmetrical passing-beam or a driving-beam or both
非对称前照灯
6
UN Regulation No. 6
Uniform provisions concerning the approval of direction indicators for power-driven vehicles and their trailers
转向灯
7
UN Regulation No. 7
Uniform provisions concerning the approval of front and rear position lamps, stop-lamps and end-outline marker lamps for motor vehicles (except motor cycles) and their trailers
前、后位置灯、制动灯和示廓灯
8
UN Regulation No. 8
Uniform provisions concerning the approval of motor vehicle headlamps emitting an asymmetrical passing-beam or a driving-beam or both and equipped with halogen filament lamps (H1, H2, H3, HB3, HB4, H7, H8, H9, HIR1, HIR2 and/or H11)
非对称前照灯
9
UN Regulation No. 9
Noise of three-wheeled vehicles
三轮车噪音
10
UN Regulation No. 10
Uniform provisions concerning the approval of vehicles with regard to electromagnetic compatibility
电磁兼容(EMC)
11
UN Regulation No. 11
Uniform provisions concerning the approval of vehicles with regard to door latches and door retention components
门锁门铰链
12
UN Regulation No. 12
Uniform provisions concerning the approval of vehicles with regard to the protection of the driver against the steering mechanism in the event of impact
转向保护
13
UN Regulation No. 13
Uniform provisions concerning the approval of vehicles of categories M, N and O with regard to braking
商用车制动
13
UN Regulation No. 13H
Uniform provisions concerning the approval of passenger cars with regard to braking
乘用车制动

14
UN Regulation No. 14
Uniform provisions concerning the approval of vehicles with regard to safety-belt anchorages, ISOFIX anchorages systems and ISOFIX top tether anchorages
安全带固定点、ISOFIX固定系统及上系带
15
UN Regulation No. 15
Uniform provisions concerning the approval of vehicles equipped with a positive-ignition engine or with a compression-ignition engine with regard to the emission of gaseous pollutants by the engine - method of measuring the power of positive-ignition engines -method of measuring the fuel consumption of vehicles
汽油车排放
16
UN Regulation No. 16
I. Safety-belts, restraint systems, child restraint systems and ISOFIX child  restraint systems for occupants of power-driven vehicles
II. Vehicles equipped with safety-belts, safety-belt reminders, restraint systems,  child restraint systems and ISOFIX child restraint systems
I. 乘员安全带、约束系统、儿童约束系统及ISOFIX儿童约束系统
II. 装有安全带、安全带提醒、约束系统、儿童约束系统及ISOFIX儿童约束系统的车辆
17
UN Regulation No. 17
Uniform provisions concerning the approval of vehicles with regard to the seats, their anchorages and any head restraints
座椅、座椅固定点及头枕
18
UN Regulation No. 18
Uniform provisions concerning the approval of motor vehicles with regard to their protection against unauthorized use
防盗装置
19
UN Regulation No. 19
Uniform provisions concerning the approval of power-driven vehicle front fog lamps
前雾灯
20
UN Regulation No. 20
Uniform provisions concerning the approval of motor vehicle headlamps emitting an asymmetrical passing-beam or a driving-beam or both and equipped with halogen filament lamps (H4 lamps)
非对称前照灯
21
UN Regulation No. 21
Uniform provisions concerning the approval of vehicles with regard to their interior fittings
内部突出物
22
UN Regulation No. 22
Uniform provisions concerning the approval of protective helmets and their visors for drivers and passengers of motor cycles and mopeds
头盔和面罩
23
UN Regulation No. 23
Uniform provisions concerning the approval of reversing and manoeuvring lamps for power-driven vehicles and their trailers
倒车灯和操作灯
24
UN Regulation No. 24
Uniform provisions concerning:
I. The approval of compression ignition (C.I.) engines with regard to the emission of visible pollutants
II. The approval of motor vehicles with regard to the installation of C.I. engines of an approved type
III. The approval of motor vehicles equipped with C.I. engines with regard to the emission of visible pollutants by the engine
IV. The measurement of power of C.I. engine
I. 柴油发动机烟度
II. 装有已批准柴油发动机的车辆
III. 柴油发动机车辆烟度
IV. 柴油发动机功率
25
UN Regulation No. 25
Uniform provisions concerning the approval of head restraints (headrests), whether or not incorporated in vehicle seats
头枕
26
UN Regulation No. 26
Uniform provisions concerning the approval of vehicles with regard to their external projections
外部突出物
27
UN Regulation No. 27
Uniform provisions concerning the approval of advance warning triangles
三角警告牌
28
UN Regulation No. 28
Uniform provisions concerning the approval of audible warning devices and of motor vehicles with regard to their audible signals
喇叭
29
UN Regulation No. 29
Uniform provisions concerning the approval of vehicles with regard to the protection of the occupants of the cab of a commercial vehicle
商用车乘员舱
30
UN Regulation No. 30
Uniform provisions concerning the approval of pneumatic tyres for motor vehicles and their trailers
轮胎
31
UN Regulation No. 31
Uniform provisions concerning the approval of power-driven vehicle's sealed-beam headlamps (SB) emitting an European asymmetrical passing-beam or a driving-beam or both
非对称前照灯
32
UN Regulation No. 32
Uniform provisions concerning the approval of vehicles with regard to the behaviour of the structure of the impacted vehicle in a rear-end collision
后碰
33
UN Regulation No. 33
Uniform provisions concerning the approval of vehicles with regard to the behaviour of the structure of the impacted vehicle in a head-on collision
前碰
34
UN Regulation No. 34
Uniform provisions concerning the approval of vehicles with regard to the prevention of fire risks
燃油箱、防火
35
UN Regulation No. 35
Uniform provisions concerning the approval of vehicles with regard to the arrangement of foot controls
脚踏板
36
UN Regulation No. 36
Uniform provisions concerning the approval of large passenger vehicles with regard to their general construction
大巴结构
37
UN Regulation No. 37
Uniform provisions concerning the approval of filament lamps for use in approved lamp units of power-driven vehicles and of their trailers
灯丝灯泡
38
UN Regulation No. 38
Uniform provisions concerning the approval of rear fog lamps for power-driven vehicles and their trailers
后雾灯
39
UN Regulation No. 39
Uniform provisions concerning the approval of vehicles with regard to the speedometer equipment including its installation
车速表
40
UN Regulation No. 40
Uniform provisions concerning the approval of motor cycles equipped with a positive-ignition engine with regard to the emission of gaseous pollutants by the engine
摩托车排放
41
UN Regulation No. 41
Uniform provisions concerning the approval of motor cycles with regard to noise
摩托车噪音
42
UN Regulation No. 42
Uniform provisions concerning the approval of vehicles with regard to their front and rear protective devices (bumpers, etc.)
前后保险杠
43
UN Regulation No. 43
Uniform provisions concerning the approval of safety glazing materials and their installation on vehicles
玻璃
44
UN Regulation No. 44
Uniform provisions concerning the approval of restraining devices for child occupants of power-driven vehicles ("Child Restraint Systems")
儿童座椅
45
UN Regulation No. 45
Uniform provisions concerning the approval of headlamp cleaners, and of power-driven vehicles with regard to headlamp cleaners
前照灯清洗装置
46
UN Regulation No. 46
Uniform provisions concerning the approval of devices for indirect vision and of motor vehicles with regard to the installation of these devices
间接视野装置
47
UN Regulation No. 47
Uniform provisions concerning the approval of mopeds equipped with a positive-ignition engine with regard to the emission of gaseous pollutants by the engine
踏板车排放
48
UN Regulation No. 48
Uniform provisions concerning the approval of vehicles with regard to the installation of lighting and light-signalling devices
灯具安装
49
UN Regulation No. 49
Uniform provisions concerning the measures to be taken against the emission of gaseous and particulate pollutants from compression-ignition engines and positive-ignition engines for use in vehicles
商用车排放
50
UN Regulation No. 50
Uniform provisions concerning the approval of front position lamps, rear position lamps, stop lamps, direction indicators and rear-registration-plate illuminating devices for vehicles of category L
摩托车信号灯
51
UN Regulation No. 51
Uniform provisions concerning the approval of motor vehicles having at least four wheels with regard to their noise emissions
噪音
52
UN Regulation No. 52
Uniform provisions concerning the approval of M2 and M3 small capacity vehicles with regard to their general construction
M2和M3类车辆一般结构
53
UN Regulation No. 53
Uniform provisions concerning the approval of category L3 vehicles with regard to the installation of lighting and light-signaling devices
L3类车辆(摩托车)灯具安装
54
UN Regulation No. 54
Uniform provisions concerning the approval of pneumatic tyres for commercial vehicles and their trailers
商用车及挂车轮胎
55
UN Regulation No. 55
Uniform provisions concerning the approval of mechanical coupling components of combinations of vehicles
机械耦合装置
56
UN Regulation No. 56
Uniform provisions concerning the approval of headlamps for mopeds and vehicles treated as such
踏板车前照灯
57
UN Regulation No. 57
Uniform provisions concerning the approval of headlamps for motor cycles and vehicles treated as such
摩托车前照灯
58
UN Regulation No. 58
Uniform provisions concerning the approval of:
I. Rear underrun protective devices (RUPDs)
II. Vehicles with regard to the installation of an RUPD of an approved type
III. Vehicles with regard to their rear underrun protection (RUP)
I. 后防护装置(RUPDs)
II. 安装已批准后防护装置的车辆
III. 车辆后防护(RUP)
59
UN Regulation No. 59
Uniform provisions concerning the approval of replacement silencing systems
可替换式消声系统
60
UN Regulation No. 60
Uniform provisions concerning the approval of two-wheeled motor cycles and mopeds with regard to driver-operated controls including the identification of controls, tell-tales and indicators
两轮车操纵件包括操纵件标识、仪表及指示器
61
UN Regulation No. 61
Uniform provisions concerning the approval of commercial vehicles with regard to their external projections forward of the cab's rear panel
商用车外部突出物
62
UN Regulation No. 62
Uniform provisions concerning the approval of power-driven vehicles with handlebars with regard to their protection against unauthorized use
两轮车防盗
63
UN Regulation No. 63
Uniform provisions concerning the approval of two-wheeled mopeds with regard to noise
两轮踏板车噪音
64
UN Regulation No. 64
Uniform provisions concerning the approval of vehicles with regard to their equipment which may include a temporary-use spare wheel and tyre unit, run-flat tyres and/or a run-flat system
备胎
65
UN Regulation No. 65
Uniform provisions concerning the approval of special warning lamps for power-driven vehicles and their trailers
特种警示灯
66
UN Regulation No. 66
Uniform provisions concerning the approval of large passenger vehicles with regard to the strength of their superstructure
大巴翻滚
67
UN Regulation No. 67
Uniform provisions concerning the approval of:
I. Approval of specific equipment of vehicles of category M and N using liquefied petroleum gases in their propulsion system
II. Approval of vehicles of category M and N fitted with specific equipment for the use of liquefied petroleum gases in their propulsion system with regard to the installation of such equipment
I. LPG零部件
II. LPG车辆
68
UN Regulation No. 68
Uniform provisions concerning the approval of power-driven vehicles including pure electric vehicles with regard to the measurement of the maximum speed
最高车速
69
UN Regulation No. 69
Uniform provisions concerning the approval of rear marking plates for slow-moving vehicles (by construction) and their trailers
慢行车辆后标志牌
70
UN Regulation No. 70
Uniform provisions concerning the approval of rear marking plates for heavy and long vehicles
重长车后标志牌
71
UN Regulation No. 71
Uniform provisions concerning the approval of agricultural tractors with regard to the driver's field of vision
农用车前视野
72
UN Regulation No. 72
Uniform provisions concerning the approval of motor cycle headlamps emitting an asymmetrical passing beam and a driving beam and equipped with halogen lamps (hs1 lamps)
摩托车非对称前照灯
73
UN Regulation No. 73
Uniform provisions concerning the approval of:
I. Vehicles with regard to their lateral protection devices (LPD)
II. Lateral protection devices (LPD)
III. Vehicles with regard to the installation of LPD of an approved type according to Part II of this Regulation
I. 车辆侧防护
II. 侧防护装置(LPD)
III. 安装已批准侧防护装置的车辆
74
UN Regulation No. 74
Uniform provisions concerning the approval of category L1 vehicles with regard to the installation of lighting and light-signalling devices
L1类车辆(轻型两轮车)灯具安装
75
UN Regulation No. 75
Uniform provisions concerning the approval of pneumatic tyres for motor cycles and mopeds
摩托车轮胎
76
UN Regulation No. 76
Uniform provisions concerning the approval of headlamps for mopeds emitting a driving beam and a passing beam
踏板车前照灯
77
UN Regulation No. 77
Uniform provisions concerning the approval of parking lamps for power-driven vehicles
驻车灯
78
UN Regulation No. 78
Uniform provisions concerning the approval of vehicles of categories L1, L2, L3, L4 and L5 with regard to braking
摩托车制动
79
UN Regulation No. 79
Uniform provisions concerning the approval of vehicles with regard to steering equipment
转向系统
80
UN Regulation No. 80
Uniform provisions concerning the approval of seats of large passenger vehicles and of these vehicles with regard to the strength of the seats and their anchorages
大巴座椅
81
UN Regulation No. 81
Uniform provisions concerning the approval of rear-view mirrors and of two-wheeled power-driven vehicles with or without side car, with regard to the installation of rear-view mirrors on handlebars
摩托车后视镜
82
UN Regulation No. 82
Uniform provisions concerning the approval of moped headlamps equipped with filament halogen lamps (HS2 LAMPS)
踏板车前照灯
83
UN Regulation No. 83
Uniform provisions concerning the approval of vehicles with regard to the emission of pollutants according to engine fuel requirements
M1/N1车辆排放
84
UN Regulation No. 84
Uniform provisions concerning the approval of passenger cars equipped with an internal combustion engine with regard to the measurement of fuel consumption
燃油消耗
85
UN Regulation No. 85
Uniform provisions concerning the approval of internal combustion engines or electric drive trains intended for the propulsion of motor vehicles of categories M and N with regard to the measurement of the net power and the maximum 30 minutes power of electric drive trains
净功率
86
UN Regulation No. 86
Uniform provisions concerning the approval of agricultural or forestry vehicles with regard to the installation of lighting and light-signalling devices
农林车辆灯具安装
87
UN Regulation No. 87
Uniform provisions concerning the approval of daytime running lamps for power-driven vehicles
日间行车灯
88
UN Regulation No. 88
Uniform provisions concerning the approval of retroreflective tyres for two-wheeled vehicles
两轮车反光轮胎
89
UN Regulation No. 89
Uniform provisions concerning the approval of:
I. Vehicles with regard to limitation of their maximum speed or their adjustable speed limitation function
II. Vehicles with regard to the installation of a speed limiting device (SLD) or adjustable speed limitation device (ASLD) of an approved type
III. Speed limitation devices (SLD) and adjustable speed limitation device (ASLD)
I. 车辆限速装置
II. 安装已批准限速装置(SLD)或可调限速装置(ASLD)的车辆
III. 限速装置(SLD)或可调限速装置(ASLD)
90
UN Regulation No. 90
Uniform provisions concerning the approval of replacement brake lining assemblies, drum-brake linings and discs and drums for power-driven vehicles and their trailers
可替换制动器衬片、制动盘、制动鼓
91
UN Regulation No. 91
Uniform provisions concerning the approval of side-marker lamps for motor vehicles and their trailers
侧标志灯
92
UN Regulation No. 92
Uniform provisions concerning the approval of non-original replacement exhaust silencing systems (RESS) for motorcycles, mopeds and three-wheeled vehicles
两轮及三轮车辆非原厂可替换式消声器(RESS)
93
UN Regulation No. 93
Uniform provisions concerning the approval of:
I. Front underrun protective devices (FUPDs)
II. Vehicles with regard to the installation of an FUPD of an approved type
III. Vehicles with regard to their front underrun protection (FUP)
I. 前防护装置(FUPDs)
II. 安装已批准的前防护装置的车辆
III. 车辆前防护(FUP)
94
UN Regulation No. 94
Uniform provisions concerning the approval of vehicles with regard to the protection of the occupants in the event of a frontal collision
前碰
95
UN Regulation No. 95
Uniform provisions concerning the approval of vehicles with regard to the protection of the occupants in the event of a lateral collision
侧碰
96
UN Regulation No. 96
Uniform provisions concerning the approval of compression ignition (C.I.) engines to be installed in agricultural and forestry tractors and in non-road mobile machinery with regard to the emissions of pollutants by the engine
农林车辆排放
97
UN Regulation No. 97
Uniform provisions concerning the approval of vehicle alarm systems (VAS) and of motor vehicles with regard to their alarm systems (AS)
车辆报警装置(VAS)和车辆的报警系统(VS)
98
UN Regulation No. 98
Uniform provisions concerning the approval of motor vehicle headlamps equipped with gas-discharge light sources
气体放电光源(HID)
99
UN Regulation No. 99
Uniform provisions concerning the approval of gas-discharge light sources for use in approved gas-discharge lamp units of power-driven vehicles
气体放电前照灯
100
UN Regulation No. 100
Uniform provisions concerning the approval of vehicles with regard to specific requirements for the electric power train
I. 电气安全
II. 动力电池
101
UN Regulation No. 101
Uniform provisions concerning the approval of passenger cars powered by an internal combustion engine only, or powered by a hybrid electric power train with regard to the measurement of the emission of carbon dioxide and fuel consumption and/or the measurement of electric energy consumption and electric range, and of categories M1 and N1 vehicles powered by an electric power train only with regard to the measurement of electric energy consumption and electric range
二氧化碳排放量、燃油消耗
电能消耗、电能续驶里程
102
UN Regulation No. 102
Uniform provisions concerning the approval of:
I. a close-coupling device (CCD)
II. vehicles with regard to the fitting of an approved type of CCD
I. 紧耦合装置(CCD)
II. 安装已批准紧耦合装置的车辆
103
UN Regulation No. 103
Uniform provisions concerning the approval of replacement pollution control devices for power-driven vehicles contents
可替换式污染控制装置(三元催化器)
104
UN Regulation No. 104
Uniform provisions concerning the approval of retro-reflective markings for vehicles of category M, N and O
反光标贴
105
UN Regulation No. 105
Uniform provisions concerning the approval of vehicles intended for the carriage of dangerous goods with regard to their specific constructional features
危险货物运输车辆
106
UN Regulation No. 106
Uniform provisions concerning the approval of pneumatic tyres for agricultural vehicles and their trailers
农用车辆轮胎
107
UN Regulation No. 107
Uniform provisions concerning the approval of category M2 or M3 vehicles with regard to their general construction
M2/M3车辆一般结构
108
UN Regulation No. 108
Uniform provisions concerning the approval for the production of retreaded pneumatic tyres for motor vehicles and their trailers
翻新轮胎
109
UN Regulation No. 109
Uniform provisions concerning the approval for the production of retreaded pneumatic tyres for commercial vehicles and their trailers
商用车翻新轮胎
110
UN Regulation No. 110
Uniform provisions concerning the approval of:
I. Specific components of motor vehicles using compressed natural gas (CNG) and/or liquefied natural gas (LNG) in their propulsion system
II. Vehicles with regard to the installation of specific components of an approved type for the use of compressed natural gas (CNG) and/or liquefied natural gas (LNG) in their propulsion system
I. CNG/LNG零部件
II. CNG/LNG零部件安装
111
UN Regulation No. 111
Uniform provisions concerning the approval of tank vehicles of categories N and O with regard to rollover stability
罐车翻滚稳定性
112
UN Regulation No. 112
Uniform provisions concerning the approval of motor vehicle headlamps emitting an asymmetrical passing-beam or a driving-beam or both and equipped with filament lamps and/or light-emitting diode (LED) modules
非对称前照灯
113
UN Regulation No. 113
Uniform provisions concerning the approval of motor vehicle headlamps emitting a symmetrical passing beam or a driving beam or both and equipped with filament, gas-discharge light sources or led modules
对称前照灯
114
UN Regulation No. 114
Uniform provisions concerning the approval of:
I. an airbag module for a replacement airbag system
II. a replacement steering wheel equipped with an airbag module of an approved type
III. a replacement airbag system other than that installed in a steering wheel
I. 可替换安全气囊系统的安全气囊模组
II. 装有已批准安全气囊模组的可替换方向盘
III. 非装在方向盘中的可替换安全气囊系统
115
UN Regulation No. 115
Uniform provisions concerning the approval of:
I. Specific LPG (liquefied petroleum gases) retrofit systems to be installed in motor vehicles for the use of LPG in their propulsion system
II. Specific CNG (compressed natural gas) retrofit systems to be installed in motor vehicles for the use of CNG in their propulsion system
I. LPG改装套件
II. CNG改装套件
116
UN Regulation No. 116
Uniform provisions concerning the protection of motor vehicles against unauthorized use
防盗装置
117
UN Regulation No. 117
Uniform provisions concerning the approval of tyres with regard to rolling sound emissions and to adhesion on wet surfaces
轮胎标签法
118
UN Regulation No. 118
Uniform technical prescriptions concerning the burning behaviour and/or the capability to repel fuel or lubricant of materials used in the construction of certain categories of motor vehicles
内饰燃烧或抗油性
119
UN Regulation No. 119
Uniform provisions concerning the approval of cornering lamps for power-driven vehicles
角灯
120
UN Regulation No. 120
Uniform provisions concerning the approval of internal combustion engines to be installed in agricultural and forestry tractors and in non-road mobile machinery, with regard to the measurement of the net power, net torque and specific fuel consumption
农林车辆发动机净功率、扭矩及燃油消耗
121
UN Regulation No. 121
Uniform provisions concerning the approval of vehicles with regard to the location and identification of hand controls, tell-tales and indicators
操纵件、仪表及指示器
122
UN Regulation No. 122
Uniform provisions concerning the approval of vehicles of categories M, N and O with regard to their heating systems
加热系统
123
UN Regulation No. 123
Uniform provisions concerning the approval of adaptive front-lighting systems (AFS) for motor vehicles
自适应前照灯(AFS)
124
UN Regulation No. 124
Uniform provisions concerning the approval of wheels for passenger cars and their trailers
轮毂
125
UN Regulation No. 125
Uniform provisions concerning the approval of motor vehicles with regard to the forward field of vision of the motor vehicle driver
前视野
126
UN Regulation No. 126
Uniform provisions concerning the approval of partitioning systems to protect passengers against displaced luggage, supplied as non original vehicle equipment
非原厂隔离系统
127
UN Regulation No. 127
Uniform provisions concerning the approval of motor vehicles with regard to their pedestrian safety performance
行人保护
128
UN Regulation No. 128
Uniform provisions concerning the approval of light emitting diode (LED) light sources for use in approved lamp units on power-driven vehicles and their trailers
LED光源
129
UN Regulation No. 129
Uniform provisions concerning the approval of enhanced Child Restraint Systems (ECRS)
加强型儿童约束系统(ECRS)
130
UN Regulation No. 130
Uniform provisions concerning the approval of motor vehicles with regard to the Lane Departure Warning System (LDWS)
车道偏离预警系统(LDWS)
131
UN Regulation No. 131
Uniform provisions concerning the approval of motor vehicles with regard to the Advanced Emergency Braking Systems (AEBS)
先进紧急制动系统(AEBS)
132
UN Regulation No. 132
Uniform provisions concerning the approval of Retrofit Emission Control devices (REC) for heavy duty vehicles, agricultural and forestry tractors and non-road mobile machinery equipped with compression ignition engines
排放控制装置改装套件(REC)
133
UN Regulation No. 133
Uniform provisions concerning the approval of motor vehicles with regard to their reusability, recyclability and recoverability
回收利用(RRR)
134
UN Regulation No. 134
Uniform provisions concerning the approval of motor vehicles and their components with regard to the safety-related performance of hydrogen-fuelled vehicles (HFCV)
氢燃料车辆(HFCV)
135
UN Regulation No. 135
Uniform provisions concerning the approval of vehicles with regard to their Pole Side Impact performance (PSI)
柱撞(PSI)
136
UN Regulation No. 136
Uniform provisions concerning the approval of vehicles of category L with regard to specific requirements for the electric power train
I. L类车辆电气安全
II. L类车辆动力电池
137
UN Regulation No. 137
Uniform provisions concerning the approval of passenger cars in the event of a frontal collision with focus on the restraint system
约束系统前碰
138
UN Regulation No. 138
Uniform provisions concerning the approval of Quiet Road Transport Vehicles with regard to their reduced audibility
无声道路交通车辆(QRTV)
139
UN Regulation No. 139
Uniform provisions concerning the approval of passenger cars with regard to Brake Assist Systems (BAS)
制动辅助系统(BAS)
140
UN Regulation No. 140
Uniform provisions concerning the approval of passenger cars with regard to Electronic Stability Control (ESC) Systems
电子稳定控制系统(ESC)
141
UN Regulation No. 141
Uniform provisions concerning the approval of vehicles with regard to their Tyre Pressure Monitoring Systems (TPMS)
胎压监测系统(TPMS)
142
UN Regulation No. 142
Uniform provisions concerning the approval of motor vehicles with regard to the installation of their tyres
轮胎安装
143
UN Regulation No. 143
Regulation on uniform provisions concerning the approval of Heavy Duty Dual-Fuel Engine Retrofit Systems (HDDF-ERS) to be installed on heavy duty diesel engines and vehicles
重型车辆双燃料改装系统(HDDF-ERS)
144
UN Regulation No. 144
Uniform provisions concerning:
Ia. Accident Emergency Call Components (AECC)
Ib. Accident Emergency Call Devices (AECD) which are intended to be fitted to vehicles of Categories M and N
II. Vehicles with regard to their Accident Emergency Call Systems (AECS) when equipped with an AECD of an approved type
III. Vehicles with regard to their Accident Emergency Call Systems (AECS) when equipped with an AECD of non approved type
Ia. 事故紧急呼叫部件(AECC)
Ib. M/N类车辆事故紧急呼叫装置(AECD)
II. 装有已批准事故紧急呼叫装置(AECD)的车辆
III. 装有未批准事故紧急呼叫装置(AECD)的车辆
145
UN Regulation No. 145
ISOFIX anchorage systems, ISOFIX top tether anchorages and i-Size seating positions
ISOFIX固定系统、上系带固定点及i-Size位置
146
UN Regulation No. 146
Hydrogen and Fuel Cell Vehicles of category L
L类氢能和燃料电池车辆
147
UN Regulation No. 147
Mechanical coupling components of combinations of  agricultural vehicles
农用车辆耦合装置
148
UN Regulation No. 148
Light-signalling devices (lamps) for power-driven vehicles and their trailers
信号灯
149
UN Regulation No. 149
Road illumination devices (lamps) and systems for power-driven vehicles
照明灯
150
UN Regulation No. 150
Retro-reflective devices and markings for power-driven vehicles and their trailers
反射器和反射标志

序号
法规号
说明(英文)
说明(中文)
1
167/2013/EU
Regulation on the approval and market surveillance of agricultural and forestry vehicles
农林车辆型式批准及市场监督法规
2
2015/208/EU - Annex  II
Vehicle structure integrity
车辆结构刚性
3
2015/208/EU - Annex  III
Maximum design speed, speed governor and speed limitation devices
最高车速、限速装置
4
2015/68/EU - Annex  I-XIII
Braking devices and trailer brake coupling
制动装置及挂车制动耦合装置
5
2015/208/EU - Annex  IV
Steering for fast tractors
拖拉机转向系统
6
2015/208/EU - Annex  V
Steering
转向系统
7
2015/208/EU - Annex  VI
Speedometer
速度表
8
2015/208/EU - Annex  VII
Field of vision and windscreen wipers
视野及雨刮
9
2015/208/EU - Annex  VIII
Glazing
玻璃
10
2015/208/EU - Annex  IX
Rear-view mirrors
后视镜
11
2015/208/EU - Annex  X
Driver information systems
驾驶员信息系统
12
2015/208/EU - Annex  XI
Lighting, light signalling devices and their light sources
灯具及光源
13
2015/208/EU - Annex  XII
Lighting installation
灯具安装
14
2015/208/EU - Annex  XIII
Vehicle occupant protection, including interior fittings, head restraint, seat belts, vehicle doors
乘员保护,包括内饰、头枕、安全带和车门
15
2015/208/EU - Annex  XIV
Vehicle exterior and accessories
车辆外饰及附件
16
2015/208/EU - Annex  XV
Electro-magnetic compatibility
电磁兼容(EMC)
17
2015/208/EU - Annex  XVI
Audible warning device
喇叭
18
2015/208/EU - Annex  XVII
Heating systems
加热系统
19
2015/208/EU - Annex  XVIII
Devices to prevent unauthorised use
防盗装置
20
2015/208/EU - Annex  XIX
Registration plate
牌照板
21
2015/208/EU - Annex  XX
Statutory plate and marking
铭牌及标识
22
2015/208/EU - Annex  XXI
Dimensions and trailer mass
尺寸和挂车质量
23
2015/208/EU - Annex  XXII
Maximum laden mass
最大载质量
24
2015/208/EU - Annex  XXIII
Ballast masses
压舱物质量
25
2015/208/EU - Annex  XXIV
Safety of electrical systems
电气系统安全
26
2015/208/EU - Annex  XXV
Fuel tank
燃油箱
27
2015/208/EU - Annex  XXVI
Rear protective structures
后防护结构
28
2015/208/EU - Annex  XXVII
Lateral protection
侧防护
29
2015/208/EU - Annex  XXVIII
Load platforms
装载平台
30
2015/208/EU - Annex  XXIX
Towing devices
拖钩
31
2015/208/EU - Annex  XXX
Tyres
轮胎
32
2015/208/EU - Annex  XXXI
Spray-suppression systems
防飞溅
33
2015/208/EU - Annex  XXXII
Reverse gear
倒挡
34
2015/208/EU - Annex  XXXIII
Tracks
履带
35
2015/208/EU - Annex  XXXIV
Mechanical couplings
机械耦合装置
36
1322/2014/EU - Annex  VI
Requirements applying to roll-over protection structures (dynamic testing)
防翻滚结构(动态测试)
37
1322/2014/EU - Annex  VII
Requirements applying to roll-over protection structures (track-laying tractors)
防翻滚结构(履带式拖拉机)
38
1322/2014/EU - Annex  VIII
Requirements applying to roll-over protection structures (static testing)
防翻滚结构(静态测试)
39
1322/2014/EU - Annex  IX
Requirements applying to roll-over protection structures (front mounted roll-over protective structures on narrow-track tractors)
防翻滚结构(前部安装窄履带拖拉机)
40
1322/2014/EU - Annex  X
Requirements applying to roll-over protection structures (rear mounted roll-over protective structures on narrow-track tractors)
防翻滚结构(后部安装窄履带拖拉机)
41
1322/2014/EU - Annex  XI
Requirements applying to falling objects protection structures
坠物防护结构
42
1322/2014/EU - Annex  XII
Requirements applying to passenger seats
乘员座椅
43
1322/2014/EU - Annex  XIII
Requirements applying to the driver’s exposure to noise level
驾驶员处噪音
44
1322/2014/EU - Annex  XIV
Requirements applying to the driving seat
驾驶员座椅
45
1322/2014/EU - Annex  XV
Requirements applying to operating space and to access to the driving position
操作空间及驾驶位进入
46
1322/2014/EU - Annex  XVI
Requirements applying to power take-offs
动力输出
47
1322/2014/EU - Annex  XVII
Requirements applying to the protection of drive components
驱动部件保护
48
1322/2014/EU - Annex  XVIII
Requirements applying to seat-belt anchorages
安全带固定点
49
1322/2014/EU - Annex  XIX
Requirements applying to safety belts
安全带
50
1322/2014/EU - Annex  XX
Requirements applying to the protection against penetrating objects
穿刺物防护
51
1322/2014/EU - Annex  XXI
Requirements applying to exhaust systems
排放系统
52
1322/2014/EU - Annex  XXII
Requirements applying to the operator’s manual
操作手册
53
1322/2014/EU - Annex  XXIII
Requirements applying to control devices, including safety and reliability of control systems and emergency and automatic stop devices
操纵装置,包括操纵装置的安全及可靠性、紧急及自动停止装置
54
1322/2014/EU - Annex  XXIV
Requirements applying to the protection against other mechanical hazards
其他机械危险
55
1322/2014/EU - Annex  XXV
Requirements applying to guards and protective devices
防护装置
56
1322/2014/EU - Annex  XXVI
Requirements applying to information, warnings and markings
信息、警示和标识
57
1322/2014/EU - Annex  XXVII
Requirements applying to materials and products
材料及制品
58
1322/2014/EU - Annex  XXVIII
Requirements applying to batteries
电池
59
1322/2014/EU
Emergency exit
紧急出口
60
1322/2014/EU
Cab ventilation and filtration system
驾驶舱通风及过滤系统
61
1322/2014/EU
Burning rate of cab material
驾驶舱材料防火
62
2015/98/EU  - Annex  I e II
Pollutant emissions (emission stages from 2000/25/EC and 97/68/EC)
污染物排放
63
2015/98/EU  - Annex  III
Sound level (external) (limit values from 2009/63/EC)
外部噪声
64
1322/2014/EU - Annex  XXIX
Requirements applying to protection against hazardous substances
有害物质

序号
法规号
说明(英文)
说明(中文)
1
97/68/EC
Directive 97/68/EC of the European parliament and of the council on the approximation of the laws of the member states relating to measures against the emission of gaseous and particulate pollutants from internal combustion engines to be installed in non-road mobile machinery
非道路移动机械内燃机排放
2
2016/1628/EU
Regulation of the European parliament and of the council on requirements relating to gaseous and particulate pollutant emission limits and type-approval for internal combustion engines for non-road mobile machinery, amending Regulations (EU) No 1024/2012 and (EU) No 167/2013, and amending and repealing Directive 97/68/EC
非道路移动机械内燃机排放(替代97/68/EC
3
Regulation (EU) 2017/654
Supplementing Regulation (EU) 2016/1628 of the European Parliament and of the Council with regard to technical and general requirements relating to emission limits and type-approval for internal combustion engines for non-road mobile machinery
2016/1628/EU的补充法规
4
Regulation (EU) 2018/236
Correcting the Estonian language version of Delegated Regulation (EU) 2017/654 supplementing Regulation (EU) 2016/1628 of the European Parliament and of the Council with regard to technical and general requirements relating to emission limits and type-approval for internal combustion engines for non-road mobile machinery
Regulation (EU) 2017/654的修正法规
5
Regulation (EU) 2017/655
Supplementing Regulation (EU) 2016/1628 of the European Parliament and of the Council with regard to monitoring of gaseous pollutant emissions from in-service internal combustion engines installed in non-road mobile machinery
2016/1628/EU的补充法规
6
Regulation (EU) 2017/656
Laying down the administrative requirements relating to emission limits and type-approval of internal combustion engines for non-road mobile machinery in accordance with Regulation (EU) 2016/1628 of the European Parliament and of the Council
行政要求及排放限值
22

更多疑问?请立即在线咨询
